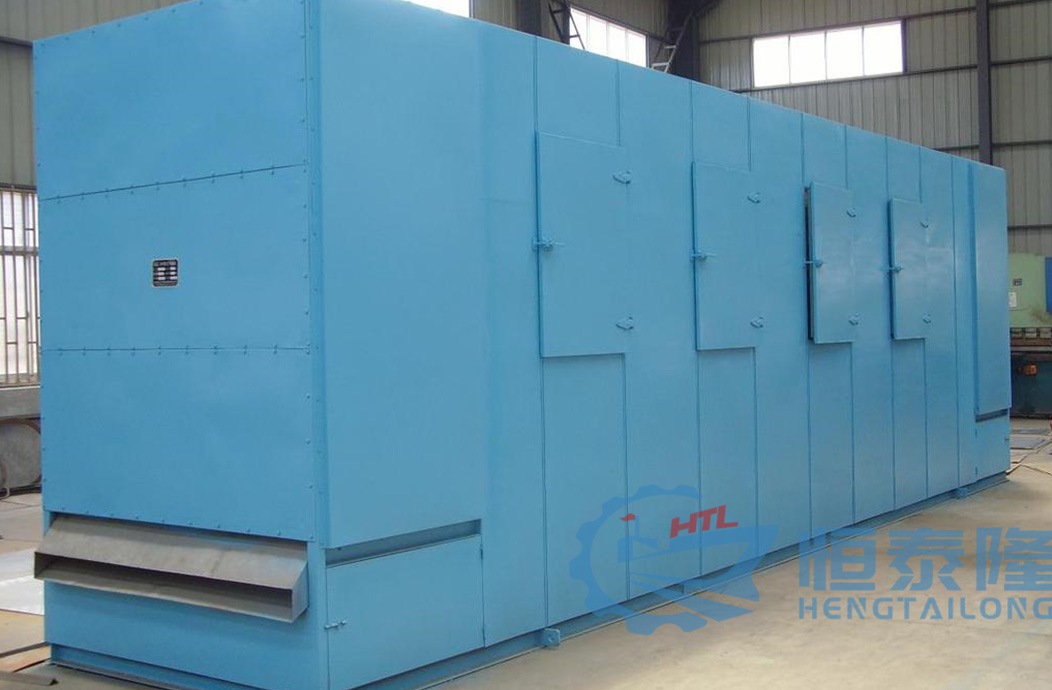

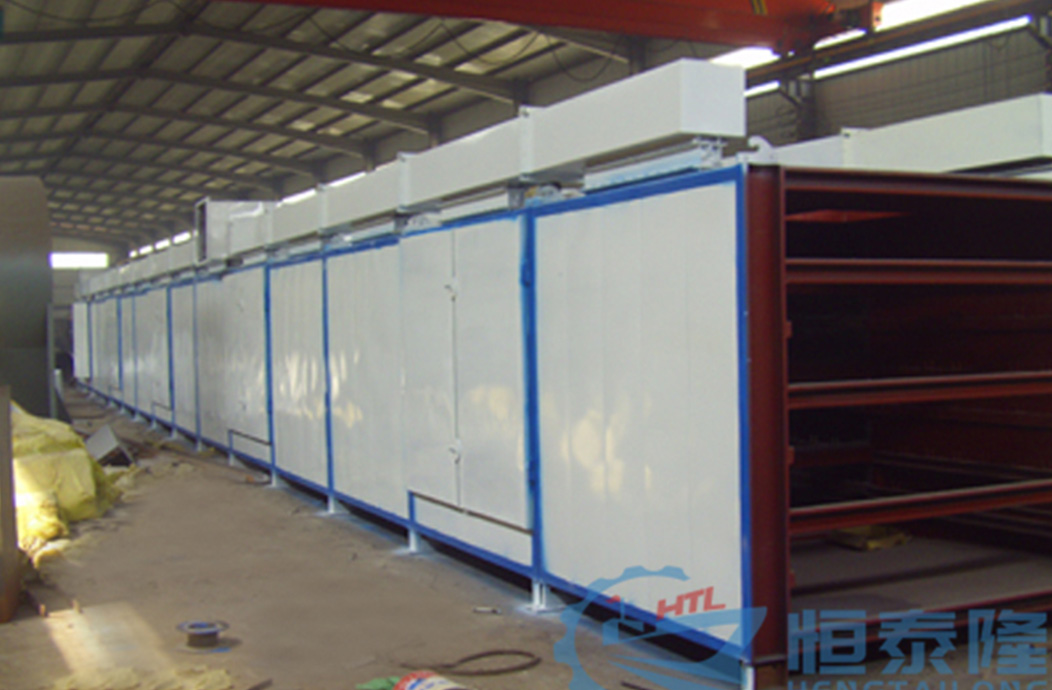

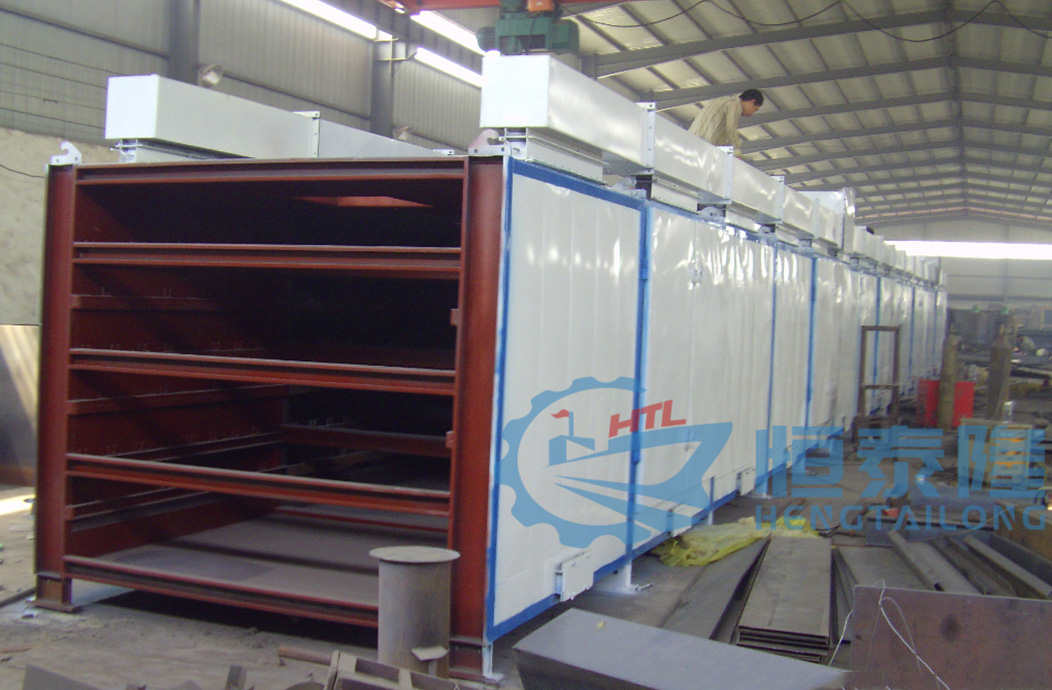

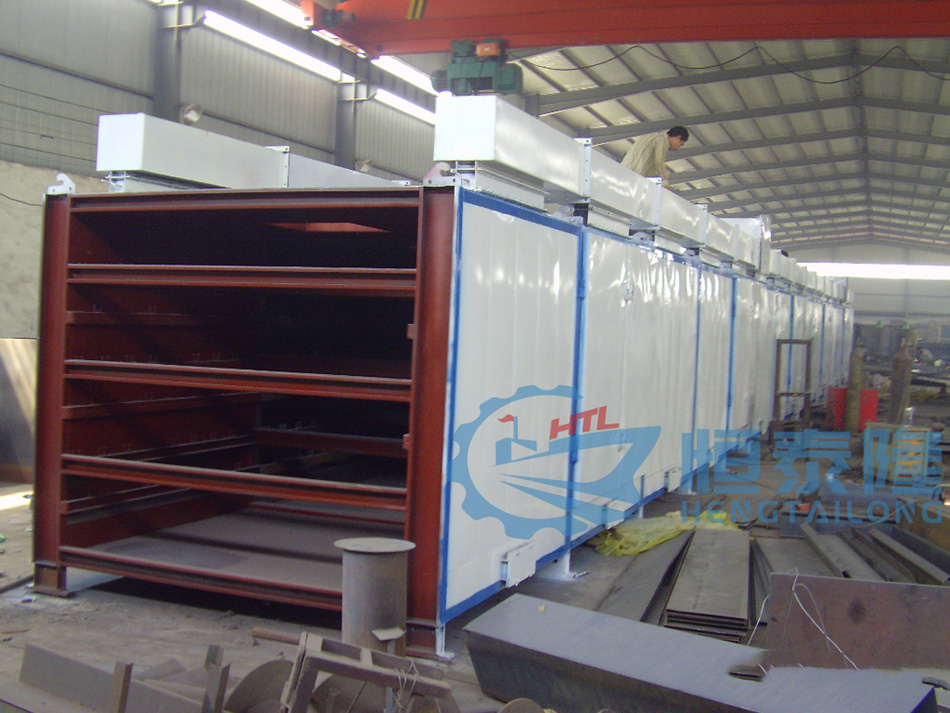

Mesh belt dryer is a kind of continuous drying equipment suitable for large-scale, continuous and large-scale material drying and dewatering. Mesh belt dryer is a kind of fruit slices, vegetables, food, agricultural and sideline products aquatic products and feed such as flake, strip, block and granular material dehydration operation of the ideal equipment, Mesh belt dryer uses hot air as a drying medium wet material continuous contact movement, so that the moisture contained in the wet material with heat diffusion, gasification and evaporation exclusion, to achieve the purpose of drying. The whole process is clean and environmentally friendly, and there is no pollution to drying materials. The main heating methods are electric heating, steam heating, hot air heating.
Vegetables:Shiitake mushrooms,potatoes,tea tree mushrooms,taro,cassava,beets,etc.
Fruits:Apples,figs,banana slices,mangoes, strawberries,cranberries,etc.
Aquatic products:Squid,shrimp,all kinds of saltwater fish.
Dried fruit:Dried mango,dried strawberry,dried sweet potato,persimmon cake,etc.
Chinese herbs:Licorice,panax ginseng,dendrobium, yam,ganoderma,lucidum,sea cucumber, honeysuckle,rosmarinus officinalis,cinnamon, ginseng,shagreen,bacopa monnieri,tianmai,tianqi, etc.
Seasonings:Pepper,chili,ginger,fennel, etc.
|
Model(Width*Length) |
HTL1.5-6-4 |
HTL2-8-4 |
HTL2-9-4 |
HTL2-10-4 |
HTL2-12-4 |
|
Layers |
4 |
||||
|
Drying area(㎡) |
29 |
45 |
51 |
57 |
69 |
|
Spread thickness of material(mm) |
50-200 |
||||
|
Working temperature(℃) |
0-120 |
||||
|
Working time(hour) |
24 |
||||
|
Capacity(t/h) |
100-150kg/h |
200kg/h |
250kg/h |
300kg/h |
500kg/h |
|
heat exchange furnace(M) |
3.2*1*2.7 |
3.9*1.26*3 |
3.9*1.26*3 |
4.7*1.5*3 |
4.7*1.5*3 |
|
Induced draft fan(kw) |
11 |
15 |
15 |
22 |
22 |
|
Exhaust fan(kw) |
1.5 |
2.2 |
|||
|
Feeding conveyor(kw) |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
|
Discharge conveyor(kw) |
0.55 |
||||
|
Total power(kw) |
14.55 |
19.25 |
19.95 |
26.95 |
27.75 |
|
LP gas consumption (90 degree fanrenheit) |
20m³/H |
25m³/H |
28m³/H |
30m³/H |
36m³/h |
|
Place requirement (W*L*H)M |
4.5*14*2.7 |
5*19*2.8 |
4.5*20*2.8 |
5.5*21*2.8 |
5.5*23*2.8 |
|
Note: Customization and adjustment can be made according to user requirements! |
|||||
