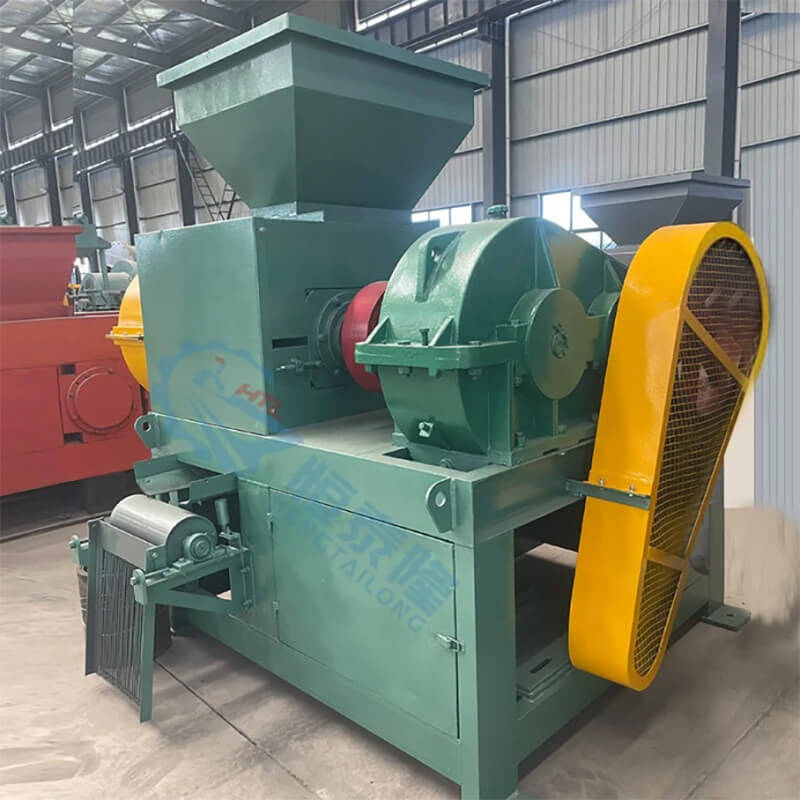

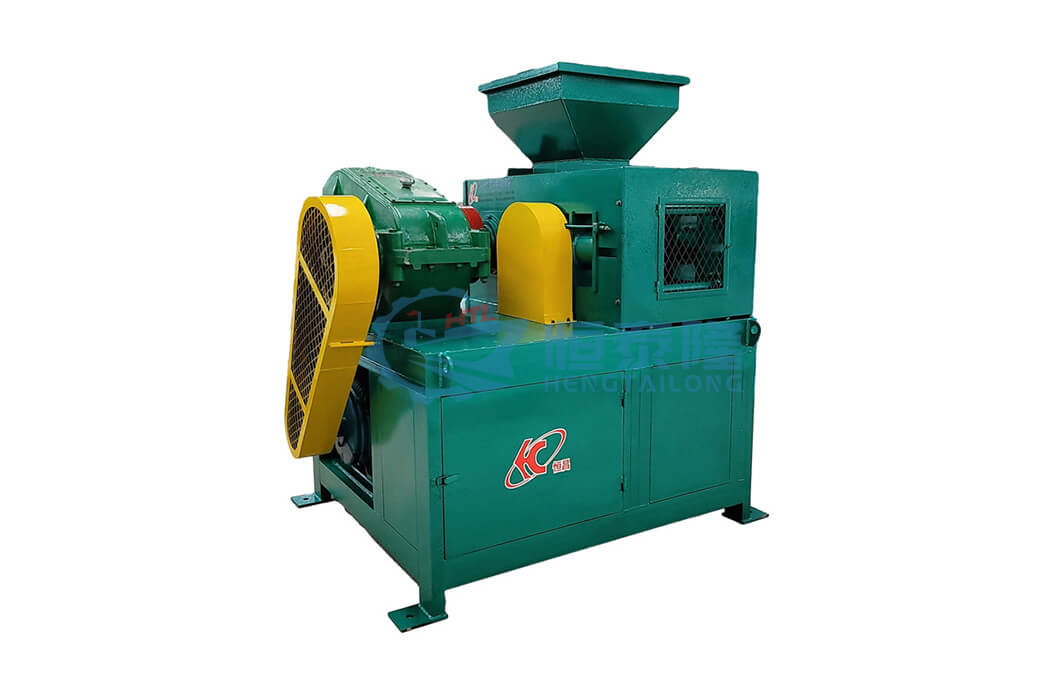

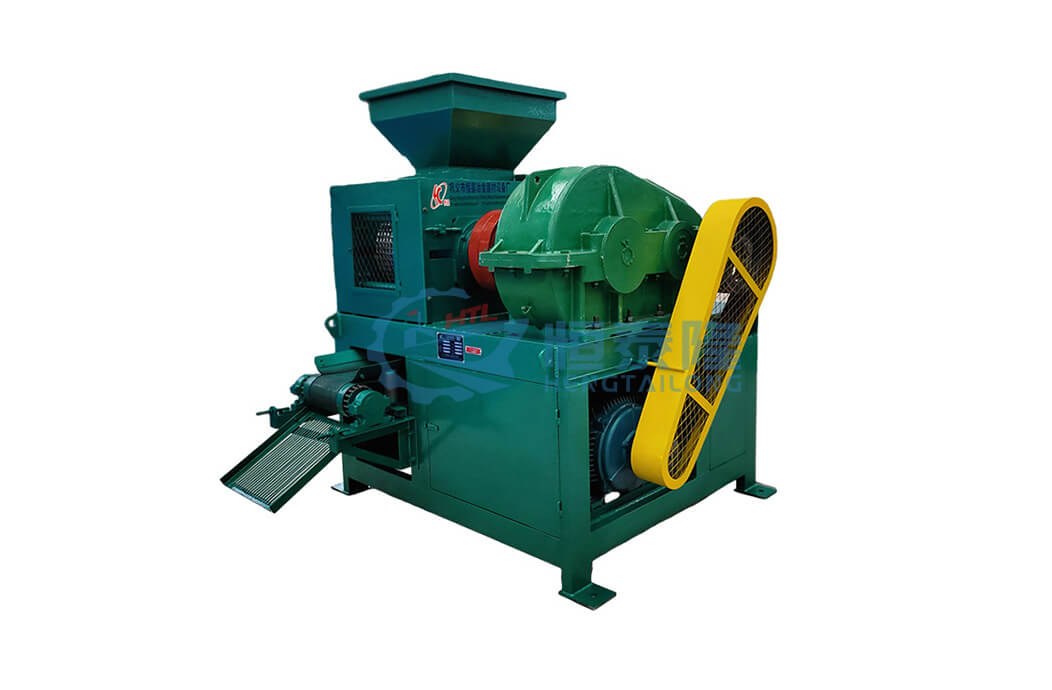

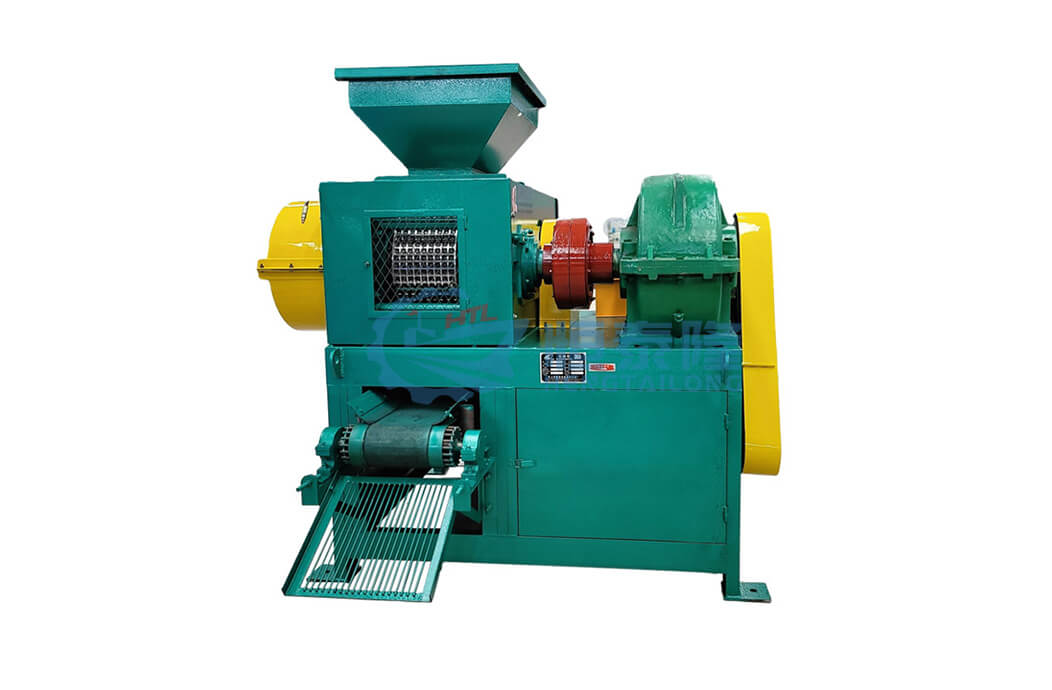

Our briquette machine are rollers pressing type. This briquette presses can apply higher pressures and thus produce higher density briquettes.
These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc.
This machine is widely used in coal industry and metallurgy industry.
It features in excellent technical performance, compact structure, reasonable assembly process, special alloy rollers, and long life-span. In addition, it also solves the troubles of low molding pressure and low strength problem in coal briquette production, and can be the ideal machine in this field.
Mechanical Briquette Machine is a mechanical equipment that presses powdered materials into pellets, widely used in multiple industries. Its main functions are to improve the utilization efficiency of materials, enhance transportation characteristics, save energy and protect the environment, and improve production efficiency. The following are the main application areas of the ball press machine: metallurgical industry, coal industry, chemical industry, building materials industry, environmental protection industry and other industries
Raw materials:
1.Charcoal powder:coconut shell charcoal powder,bamboo charcoal powder etc.
2.Metal powder: Iron powder, magnesium powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
3.Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc.

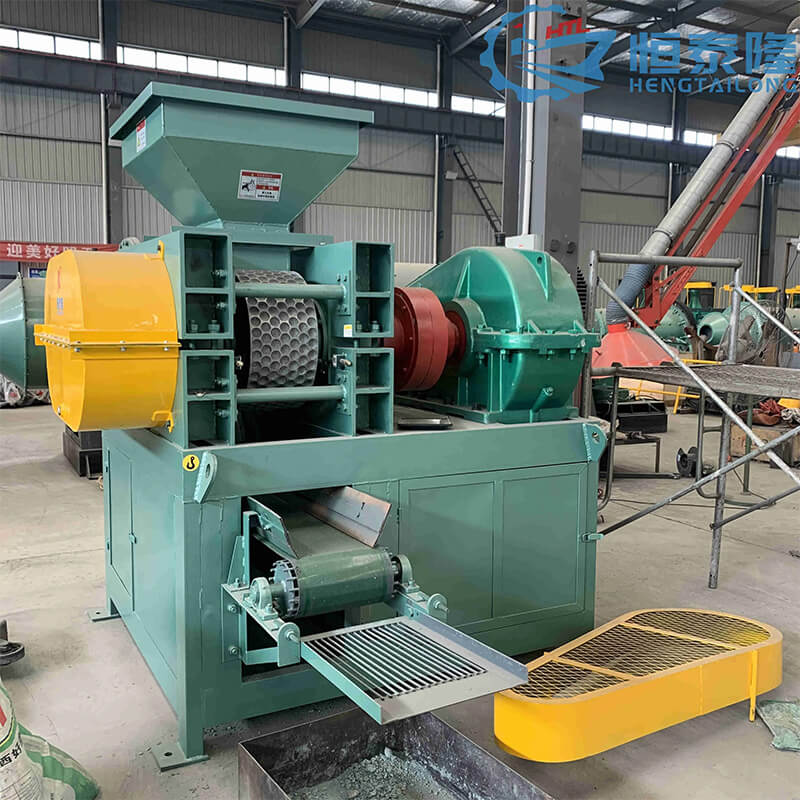

Baller Shepad\Roller display
The final products can be shaped by special moulds into different shapes such as egg, pillow, finger, heart, oval, round, sphere, column and square. We can also customize shapes for customers.
|
Model |
Gear reducer |
Motor(KW) |
Capacity(T/H) |
Dimension(m) |
|
290 |
YQ350 |
5.5 |
1-2 |
1.5*1.2*1.6 |
|
360-1 |
YQ350 |
7.5 |
2-3 |
1.7*1.2*1.6 |
|
360 |
YQ400 |
11 |
2-3 |
1.7*1.6*1.8 |
|
450 |
YQ500 |
22 |
4-5 |
1.8*1.9*2.2 |
|
550 |
YQ650 |
37 |
5-7 |
2.4*2.2*2.3 |
|
650 |
YQ750 |
45 |
8-10 |
2.6*2.2*2.7 |
|
850 |
YQ1000 |
75 |
15-20 |
2.6*2.4*3.2 |
|
1000 |
YQ1200 |
110 |
25-30 |
2.9*2.8*3.5 |
|
Note: Customization and adjustment can be made according to user requirements! |
||||
