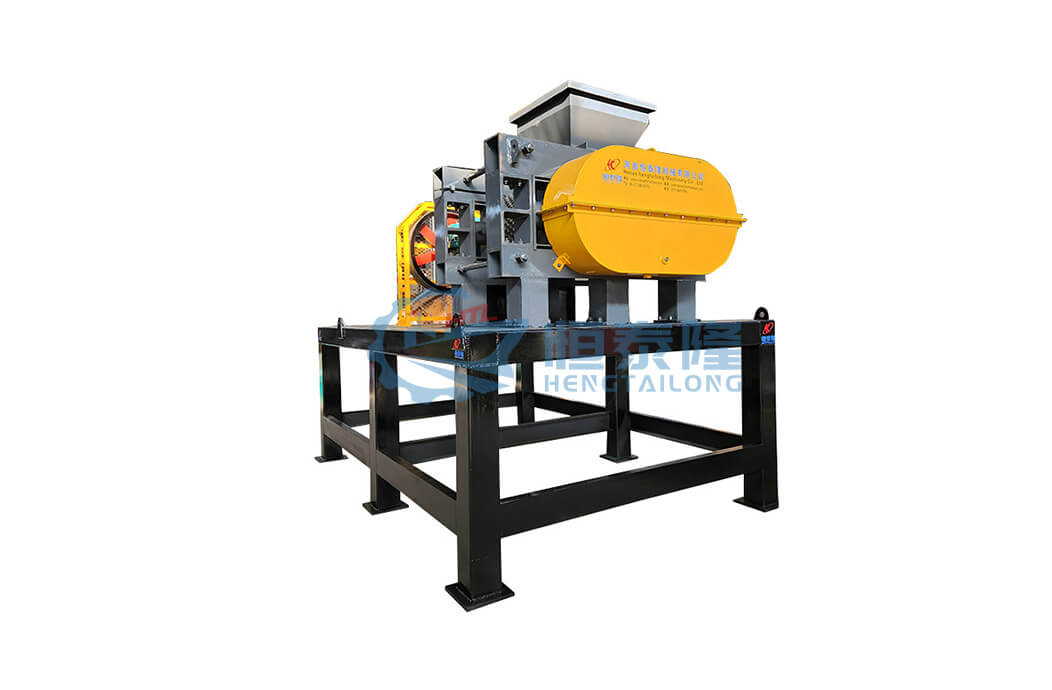

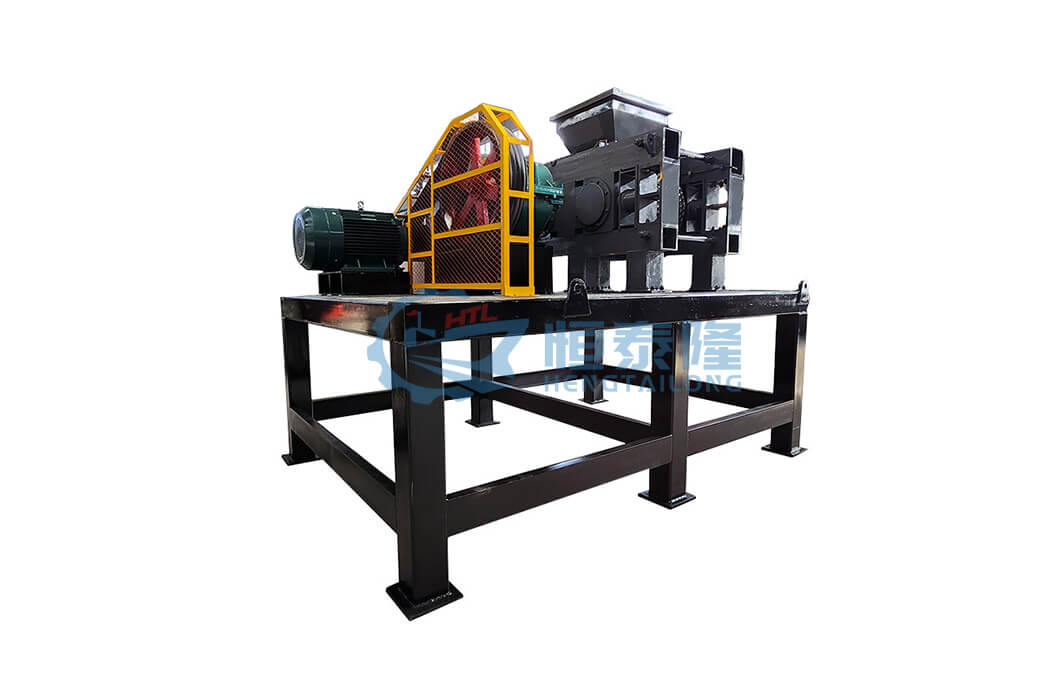

High pressure briquette machine adopt the screw governor pressure, high hydraulic forces squeeze the second compression molding. It features in high pressure and strong strength of briquette, and widely used in metallurgical, chemical, and refractories industry, etc. Applicable to limestone powder, magnesium oxide powder, copper powder, chromium powder, lead, zinc scrap, bauxite, nonferrous metal powders, coal, charcoal powder, refractory, ceramic materials, etc.
1. Direct&professional force feeding briquetting machine manufacturer
2. High briquetting ratio
3. High pressure briquetting machine
4. Durable&energy-saving coal briquetting machine
5. Offer installation guide
This series of briquetting machine will pass the power on to the two pressure roller through the reduction gears. The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

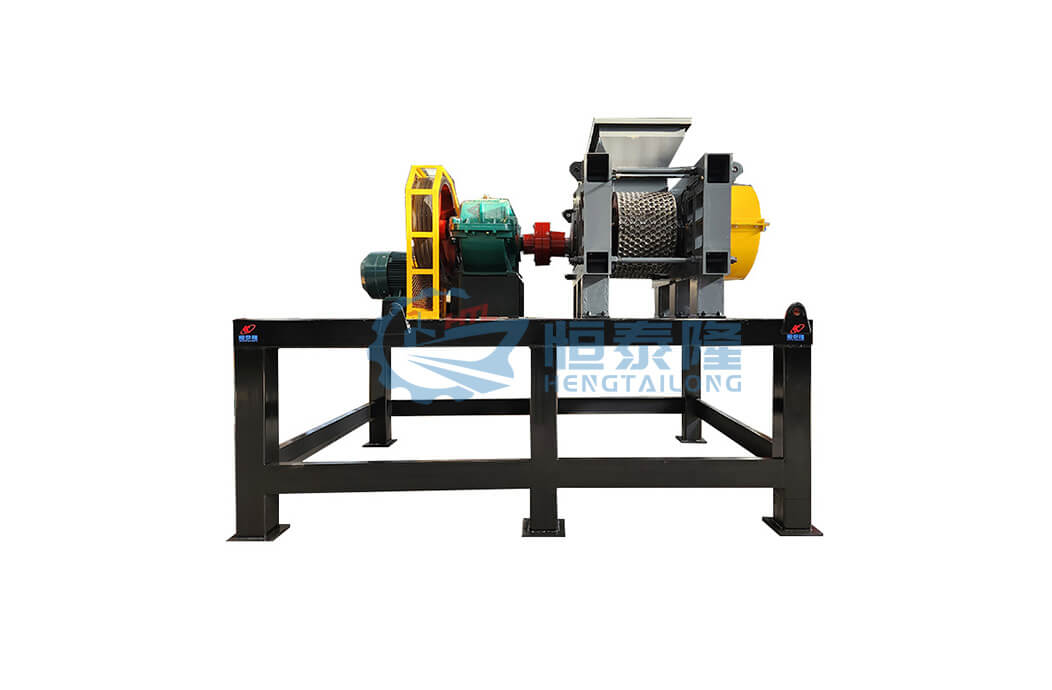

Baller Shepad\Roller display
The final products can be shaped by special mould into different shapes such as egg, pillow, finger, heart, oval, round, sphere, column and square. We can also customize shapes for customers.
| Model | Roller Size(mm) | Total Pressure(t) | Main Power(kw) | Pre-press Power(kw) | Hydraulic Pump Power(kw) | Capacity(t/h) | |
| Dia. | Width | ||||||
| QYQ-476-1 | Φ476 | 196 | 95 | 45 | 15 | 1.5 | 1-3 |
| QYQ-476-2 | Φ476 | 210 | 95 | 55 | 15 | 1.5 | 2-4 |
| QYQ-520 | Φ520 | 196 | 95 | 55 | 15 | 1.5 | 3-5 |
| QYQ-650 | Φ650 | 196 | 100 | 75 | 18.5 | 1.5 | 4-6 |
| QYQ-672 | Φ672 | 275 | 100 | 75 | 22 | 2.2 | 6-10 |
| QYQ-750 | Φ750 | 196 | 120 | 110 | 22 | 2.2 | 5-8 |
| QYQ-850 | Φ850 | 196 | 120 | 132 | 22 | 2.2 | 6-10 |
| Note: Customization and adjustment can be made according to user requirements! | |||||||
