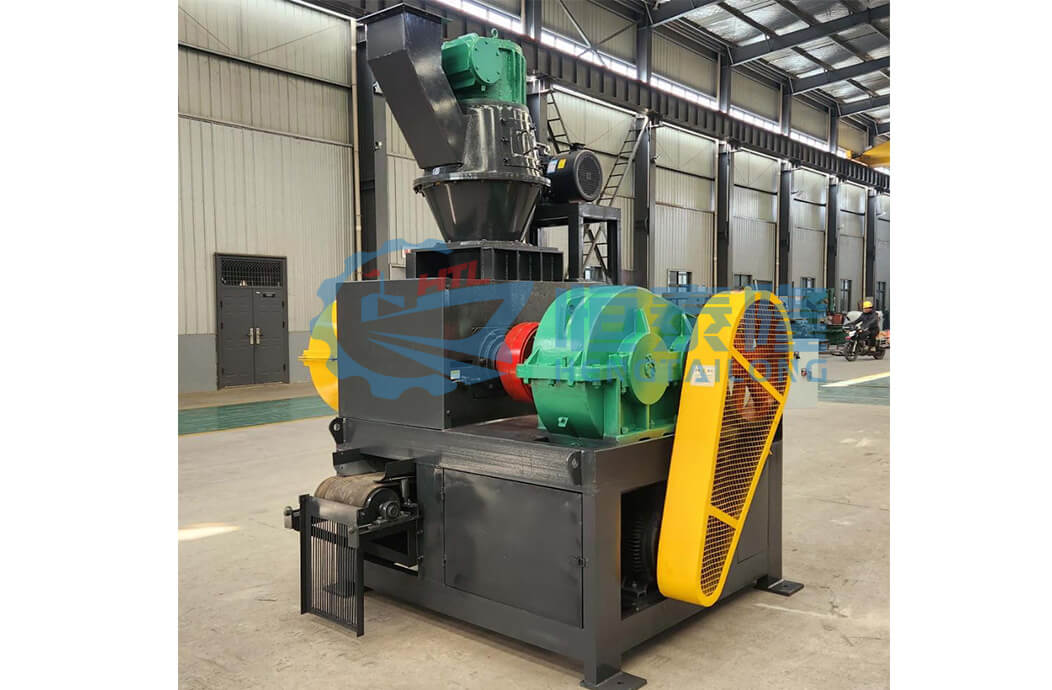

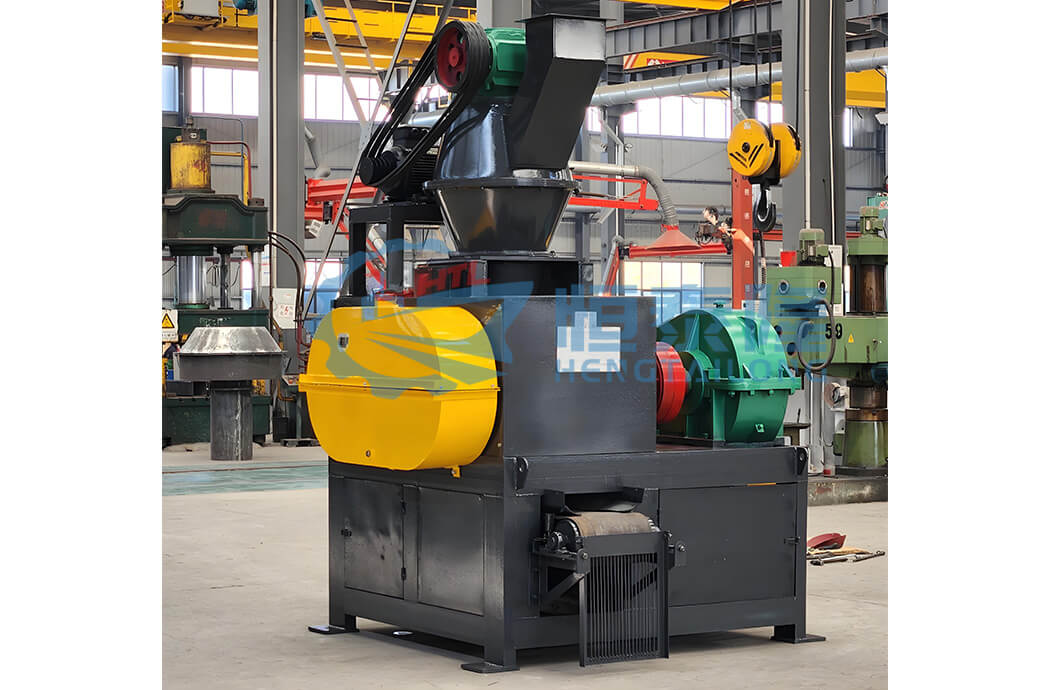

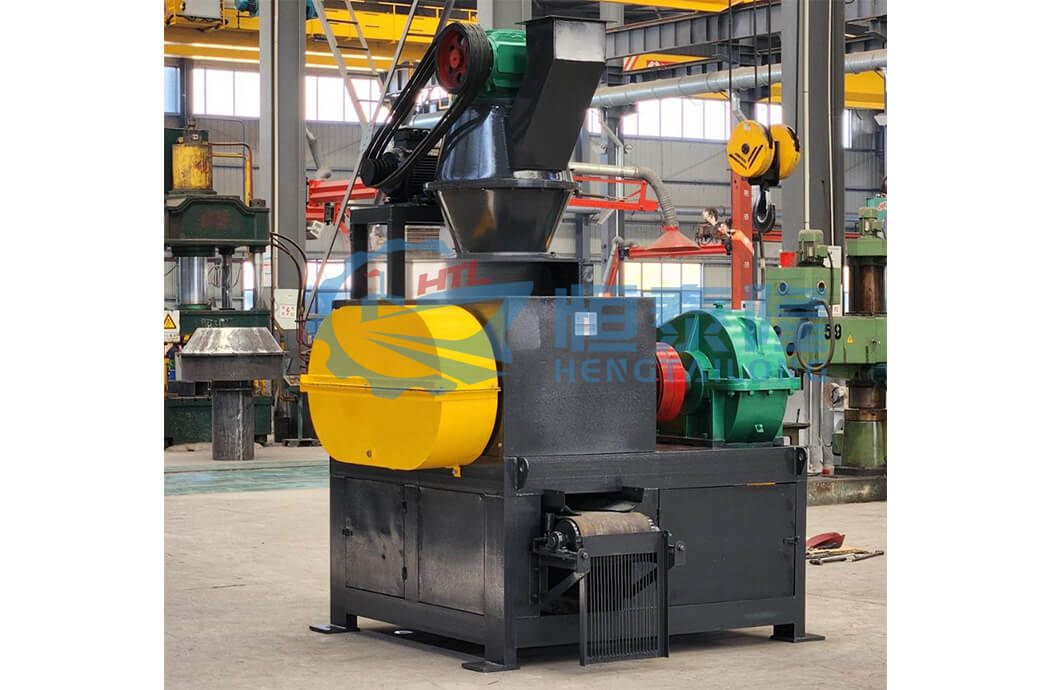

High pressure charcoal briquette making machine

Send E-mail Inquiry Now

High pressure briquette machine adopt the screw governor pressure, high hydraulic forces squeeze the second compression molding. It features in high pressure and strong strength of briquette, and widely used in metallurgical, chemical, and refractories industry, etc. Applicable to limestone powder, magnesium oxide powder, copper powder, chromium powder, lead, zinc scrap, bauxite, nonferrous metal powders, coal, charcoal powder, refractory, ceramic materials, etc.

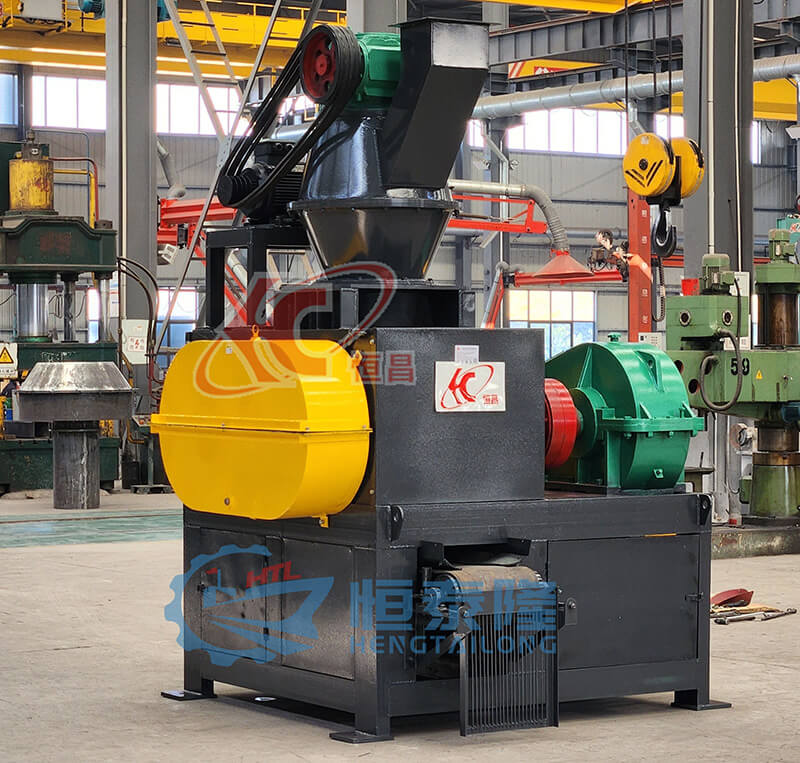

High-pressure-briquette-machine-10

Features of high pressure briquetting machine

1. Direct&professional force feeding briquetting machine manufacturer

2. High briquetting ratio

3. High pressure briquetting machine

4. Durable&energy-saving coal briquetting machine

5. Offer installation guide

Working Principle of force feeding briquette making machine for nonferrous metal powders, bauxite

This series of briquetting machine will pass the power on to the two pressure roller through the reduction gears. The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

High-pressure-briquette-machine-11

Baller Shaped\Roller display

The final products can be shaped by special mould into different shapes such as egg, pillow, finger, heart, oval, round, sphere, column and square. We can also customize shapes for customers.

High-pressure-briquette-machine-12

Product Parameters

Model	Roller Size(mm)		Total Pressure (t)	Main Power (kw)	Pre-press Power (kw)	Hydraulic Pump Power (kw)	Capacity (t/h)
	Dia.	Width
QYQ-476-1	Φ476	196	95	45	15	1.5	1-3
QYQ-476-2	Φ476	210	95	55	15	1.5	2-4
QYQ-520	Φ520	196	95	55	15	1.5	3-5
QYQ-650	Φ650	196	100	75	18.5	1.5	4-6
QYQ-672	Φ672	275	100	75	22	2.2	6-10
QYQ-750	Φ750	196	120	110	22	2.2	5-8
QYQ-850	Φ850	196	120	132	22	2.2	6-10
Note: Customization and adjustment can be made according to user requirements!
