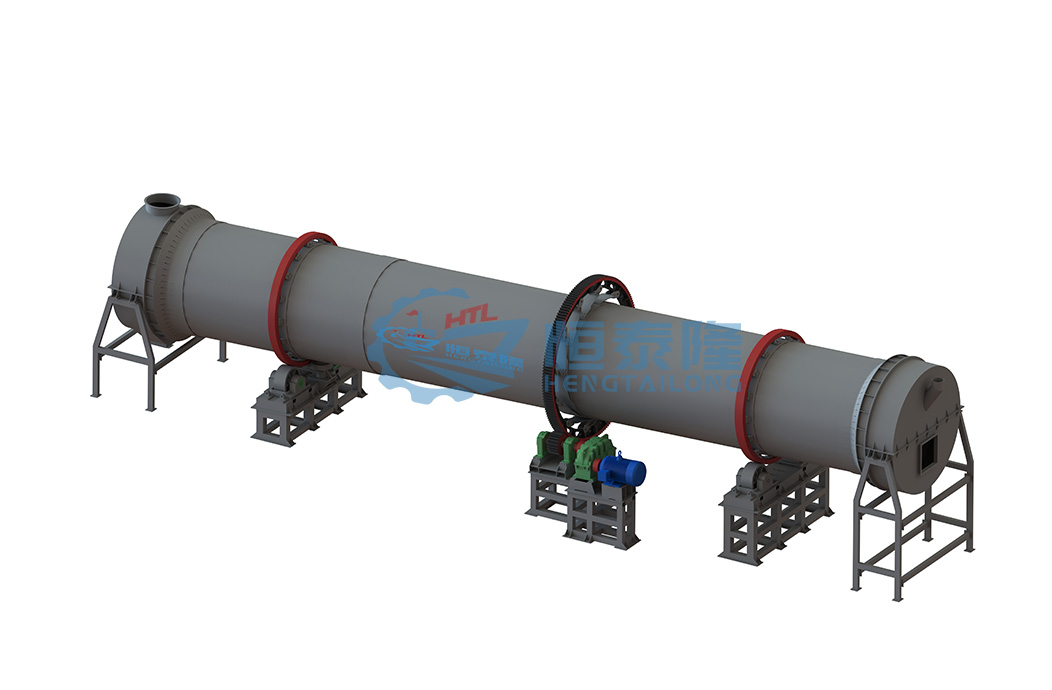

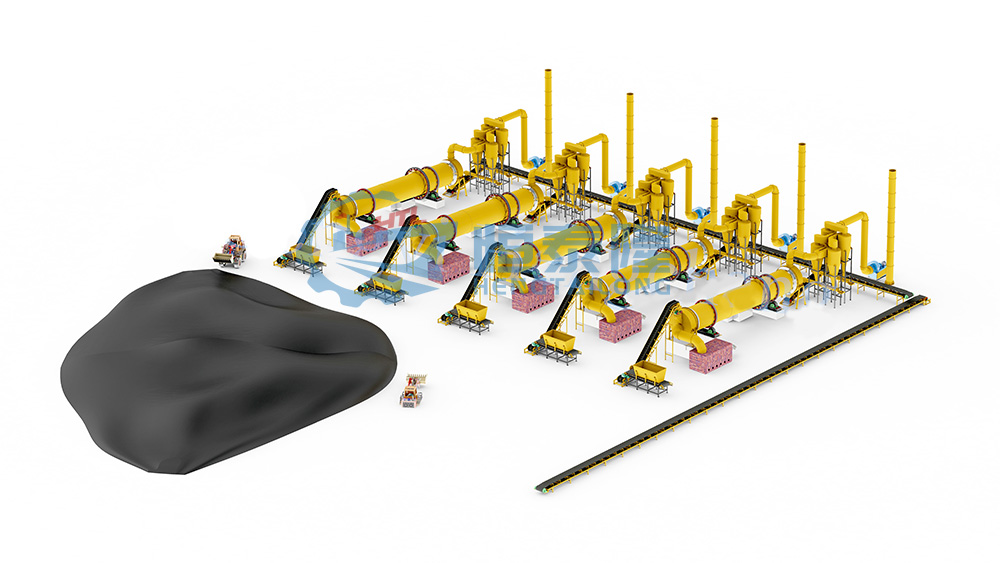

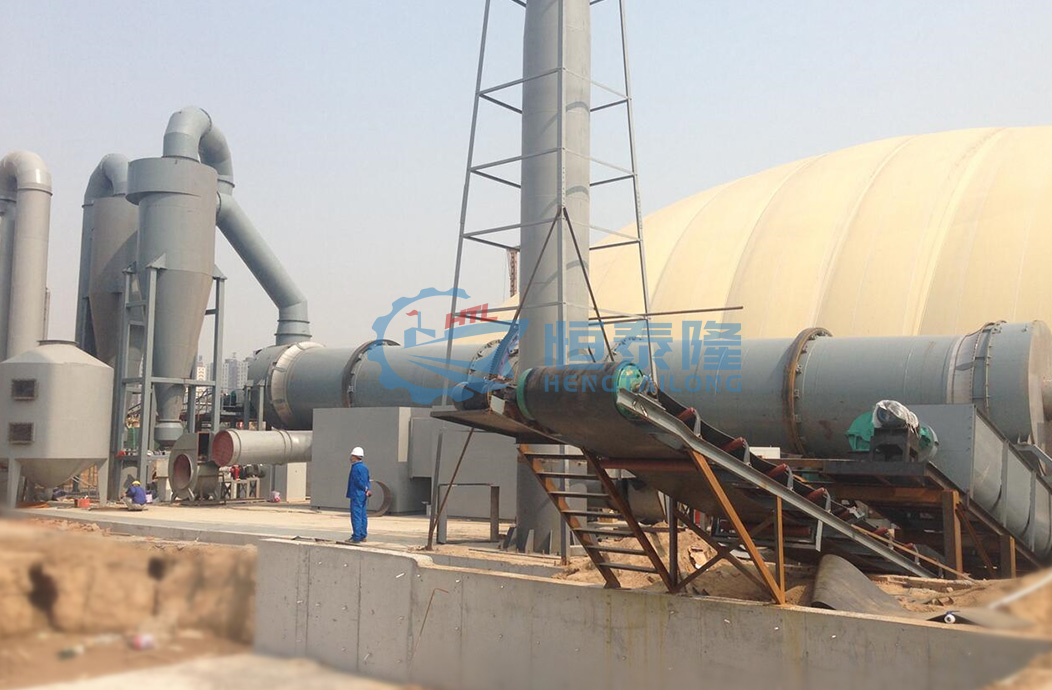

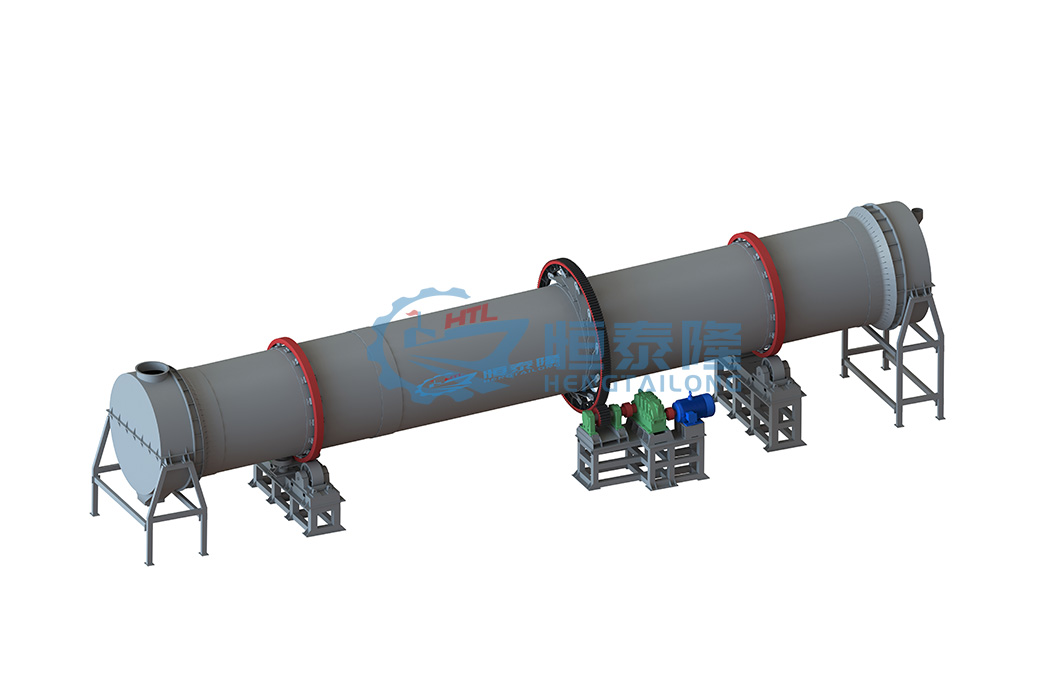

The Coal dryer is a new type of special drying equipment, which consists of a heat source, a dispersing device, a belt loading machine, a feeding machine, a rotary drum, a belt discharging machine, an induced draft fan, an unloader and a power distribution cabinet. It can be widely used in the drying of coal industry materials such as coal slime, raw coal, flotation clean coal, and mixed clean coal.
It is mainly applicable to the drying of materials with high water content, fine particle size and high viscosity (coal slime,raw coal, flotation tail coal, Mongolian coal, slag, coking flotation tail coal,mixed coal, filter pressing tail coal, fine clean coal, middling coal, or concentrate powder and other secondary slimes), as well as the drying and dehydration of building materials, mines, clay, sand, limestone, chemical industry, metallurgy, power and other industries
|
Model(m) |
Capacity(t/h) |
initial moisture(%) |
final moisture(%) |
reducer |
Installation slope (°) |
motor power(kw) |
|
0.8*8 |
0.5-3 |
30% |
15%-1% |
ZQ250 |
1.5-3 |
3kw |
|
1*10 |
1—5 |
30% |
15%-1% |
ZQ250 |
1.5-3 |
5.5KW |
|
1.2*12 |
2_8 |
30% |
15%-1% |
ZQ350 |
1.5-3 |
11KW |
|
1.6*16 |
6_10 |
30% |
15%-1% |
ZQ400 |
1.5-3 |
15KW |
|
1.8*16 |
8—15 |
30% |
15%-1% |
ZQ400 |
1.5-3 |
18.5kw |
|
2*18 |
10—20 |
30% |
15%-1% |
ZQ500 |
1.5-3 |
22kw |
|
2.2*18 |
12—25 |
30% |
15%-1% |
ZQ650 |
1.5-3 |
30kw |
|
2.4*22 |
15—30 |
30% |
15%-1% |
ZQ650 |
1.5-3 |
45kw |
|
2.6*24 |
18—35 |
30% |
15%-1% |
ZQ850 |
1.5-3 |
55kw |
|
2.8*26 |
20—40 |
30% |
15%-1% |
ZQ850 |
1.5-3 |
75kw |
|
3*28 |
25—50 |
30% |
15%-1% |
ZQ850 |
1.5-3 |
90kw |
|
3.2*28 |
30-60 |
30% |
15%-1% |
ZSY315 |
1.5-3 |
110kw |
|
3.4*30 |
35-70 |
30% |
15%-1% |
ZSY355 |
1.5-3 |
132kw |
|
3.6*32 |
40-80 |
30% |
15%-1% |
ZSY400 |
1.5-3 |
160kw |
|
3.8*32 |
50-100 |
30% |
15%-1% |
ZSY450 |
1.5-3 |
185kw |
|
Note: Customization and adjustment can be made according to user requirements! |
||||||
