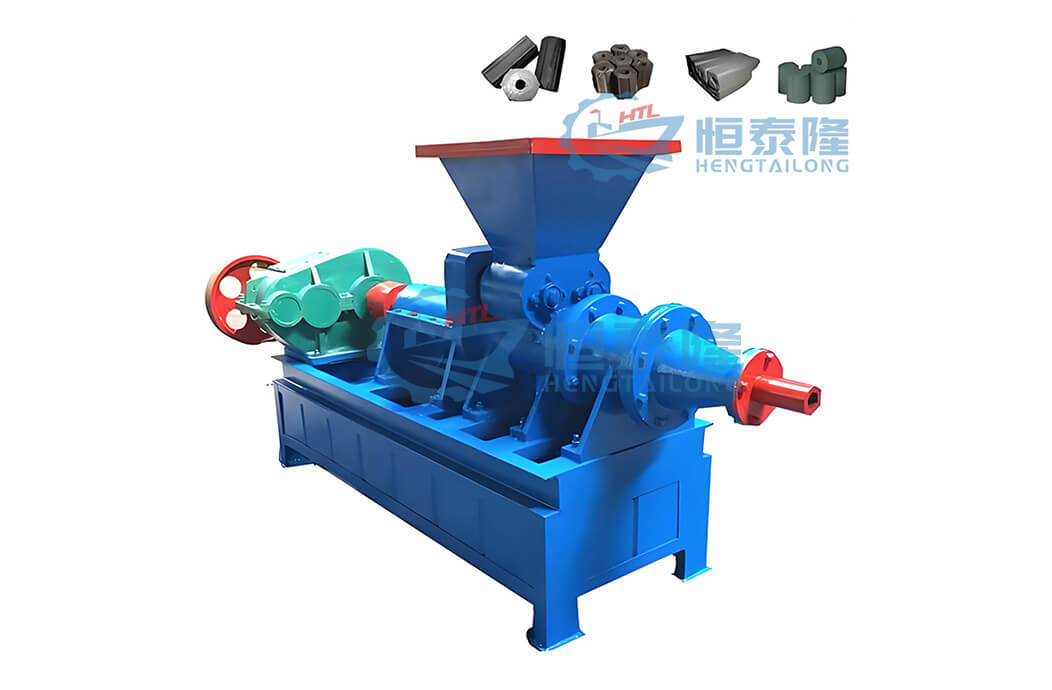

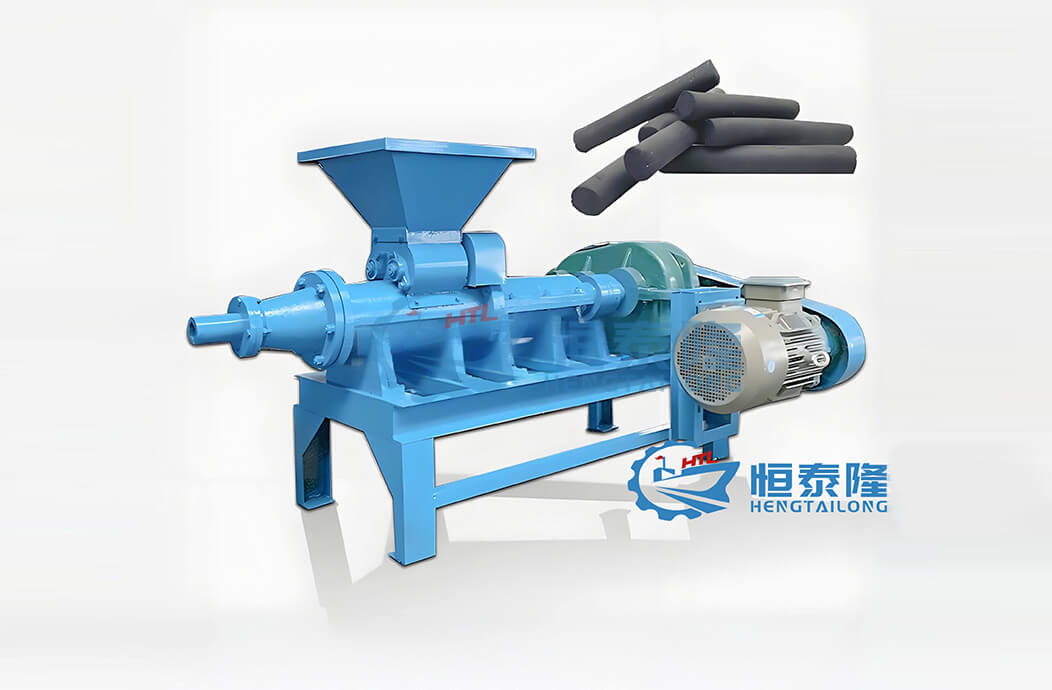

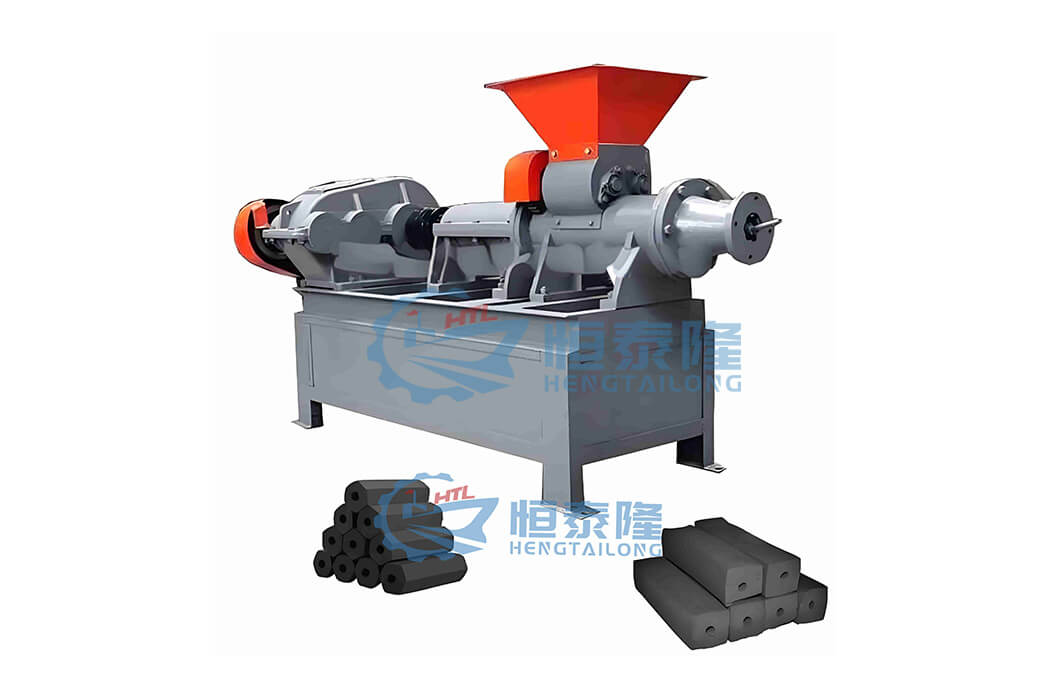

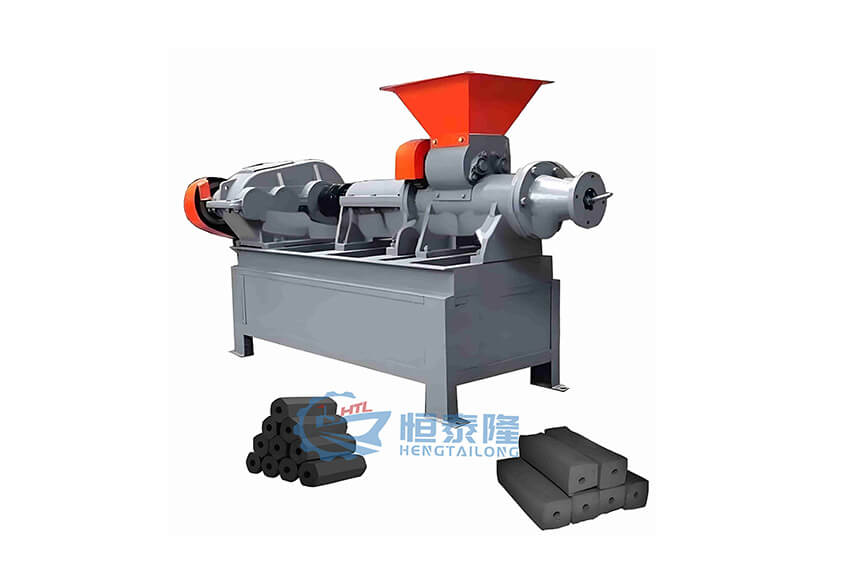

Coal Rod Machine

Send E-mail Inquiry Now

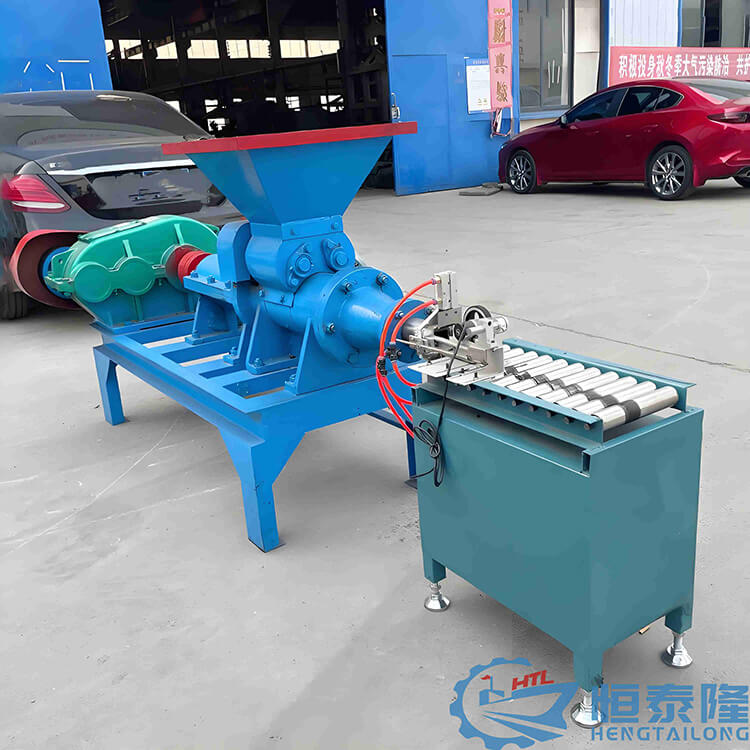

A coal rod machine (also called a coal rod extruder) is a molding machine that fully combines raw materials (charcoal powder, coal powder, coke powder, powdered materials, etc.) with water and adhesives, and compresses them into a certain shape.

Extrusion-Machine-14

Product Application

Coal rod machine is a carbon rod forming equipment that uses the principle of screw extrusion to compress the prepared charcoal powder into a predetermined shape with a certain strength. Applicable raw material range, pulverized coal, carbon powder, gypsum powder, grass powder, mugwort powder, traditional Chinese medicine powder, fruit carbon residue, mechanism carbon residue and other powders belonging to this type can be formed.

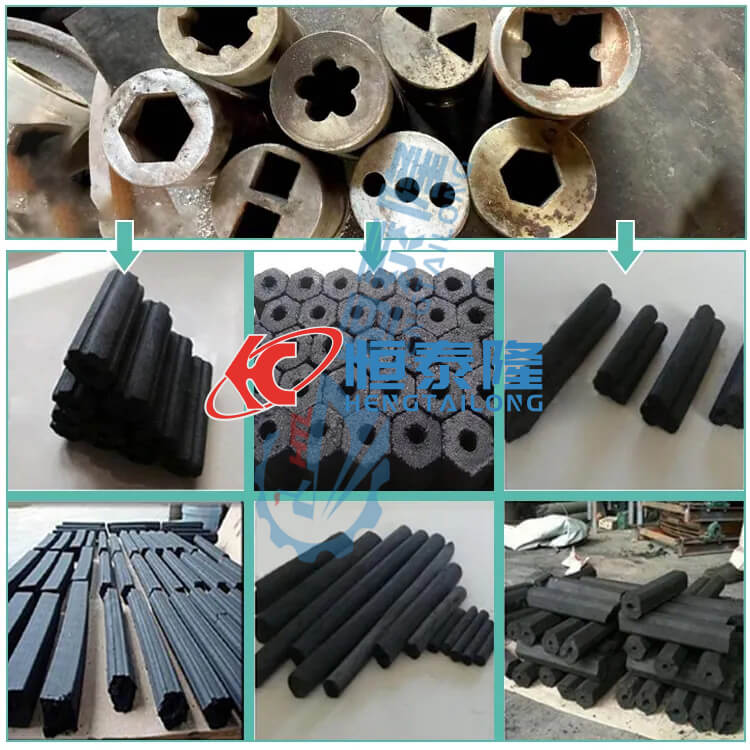

Briquettes shapes

coal bar, ball shape, egg shape, pillow shape, honeycomb coal, shisha charcoal ect.

Extrusion-Machine-15

Product Parameters

Model	HTL-140	HTL-180	HTL-220
Capacity(charcoal)	400-600kg/h	800-1200kg/h	1200-2000kg/h
Capacity(coal)	1000-2000kg/h	2000-3000kg/h	4000-6000kg/h
Bar Diameter	20-40mm	20-60mm	50-120mm
Power	11kw	18.5kw	55kw
Weight	1200kg	2500kg	5000kg
Note: Customization and adjustment can be made according to user requirements!

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

Coconut shell charcoal activated carbon production equipment(machine)

Our activated carbon production equipment produced has achieved efficient and clean production of activated carbon through process optimization and environmental design.

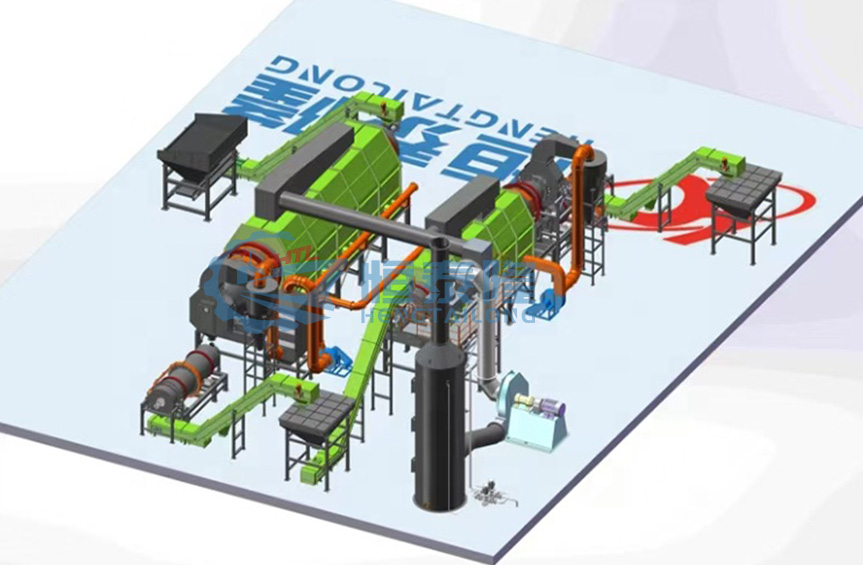

Hazelnut shell activated carbon production equipment

Our activated carbon production equipment produced has achieved efficient and clean production of activated carbon through process optimization and environmental design.

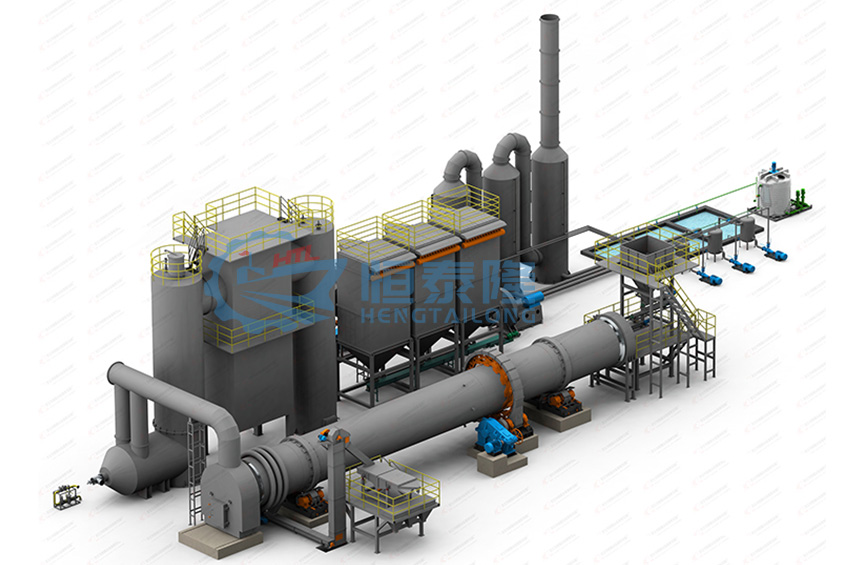

Peanut shell activated carbon production equipment

The products comply with quality standards such as ISO CE and are exported to Southeast Asian and European and American markets.

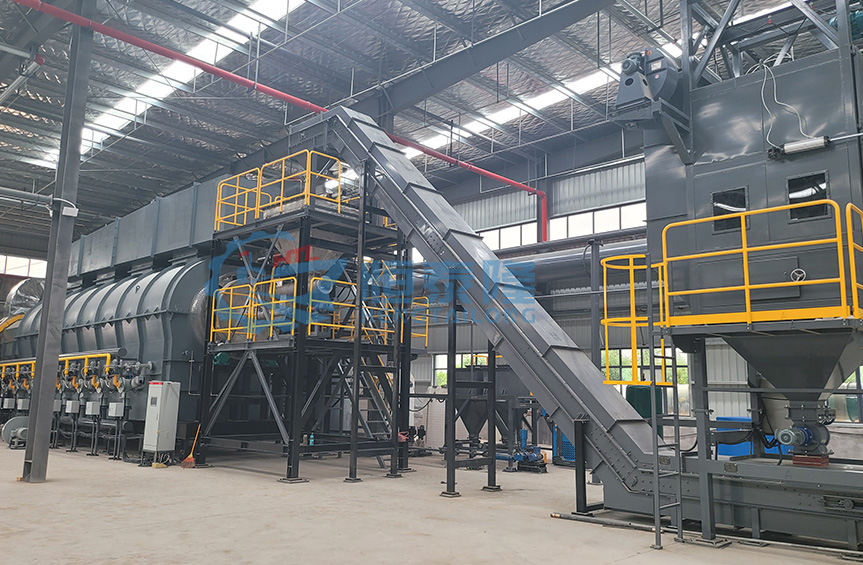

Walnut shell activated carbon production equipment

The products comply with quality standards such as ISO CE and are exported to Southeast Asian and European and American markets.

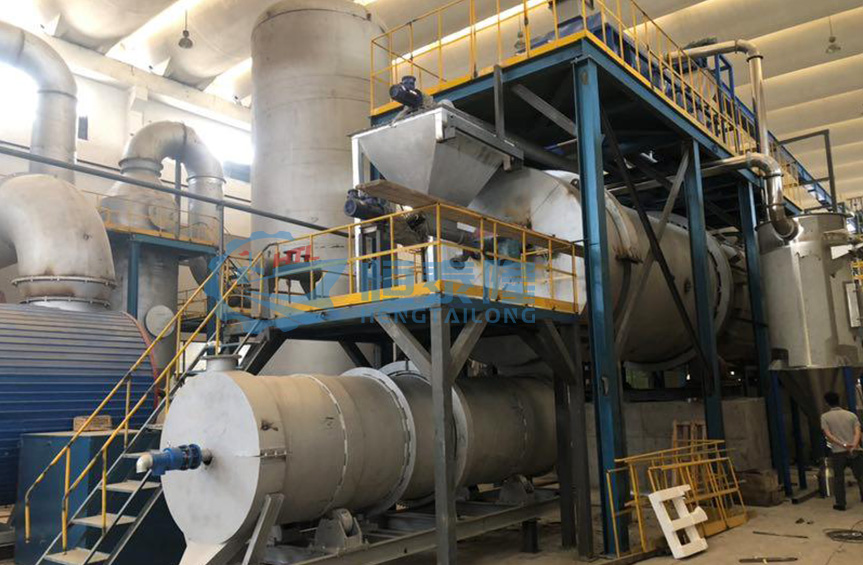

Wood activated carbon production equipment

Our activated carbon production equipment produced has achieved efficient and clean production of activated carbon through process optimization and environmental design.

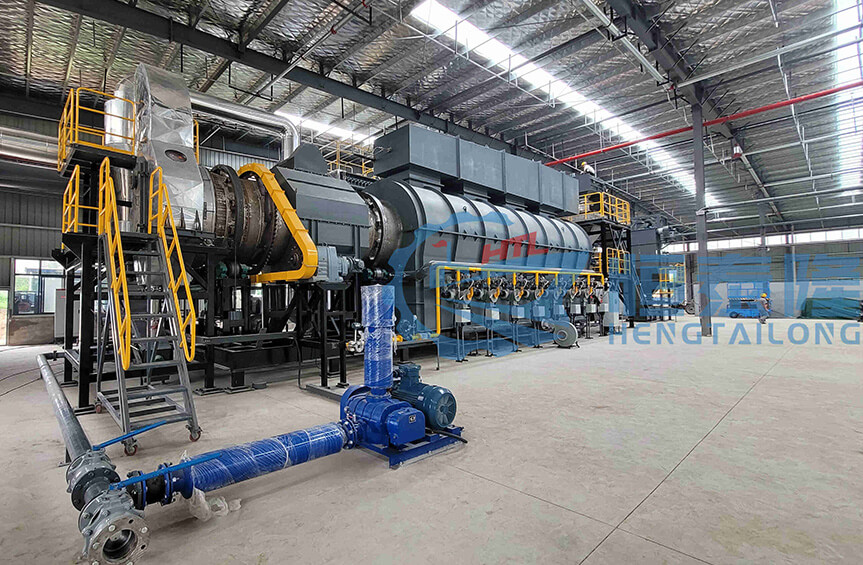

Activated carbon regeneration equipment

The reuse of waste carbon refers to the treatment of used activated carbon, charcoal, biochar, etc. to restore their adsorption properties or convert them into other valuable products, thereby achieving resource recycling and reducing environmental pollution.

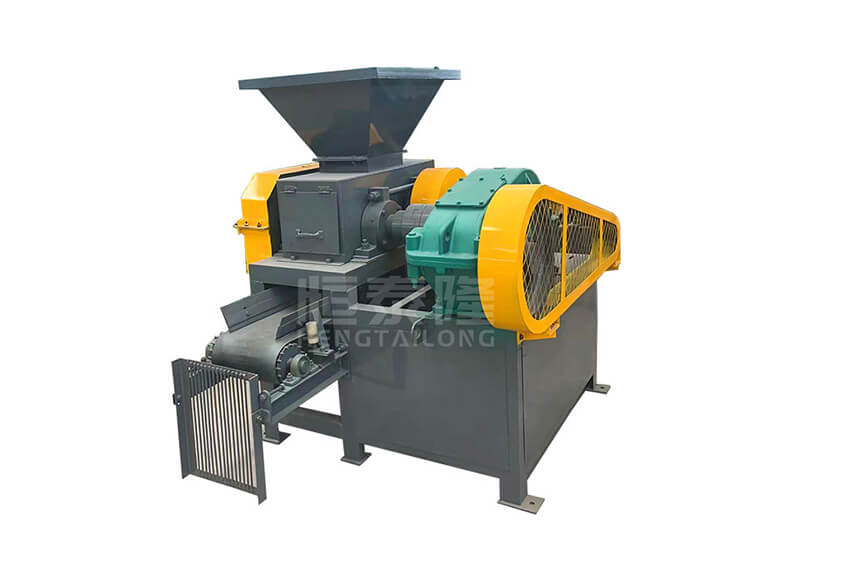

Carbon black briquette machine

Carbon black ball press briquette machine is a specialized equipment used to press carbon black powder into spherical or block shapes.

Charcoal briquette machine

HTL charcoal briquette machine advantages is high ball forming rate,energy saving and environment protection,compact structure and easy maintenance.

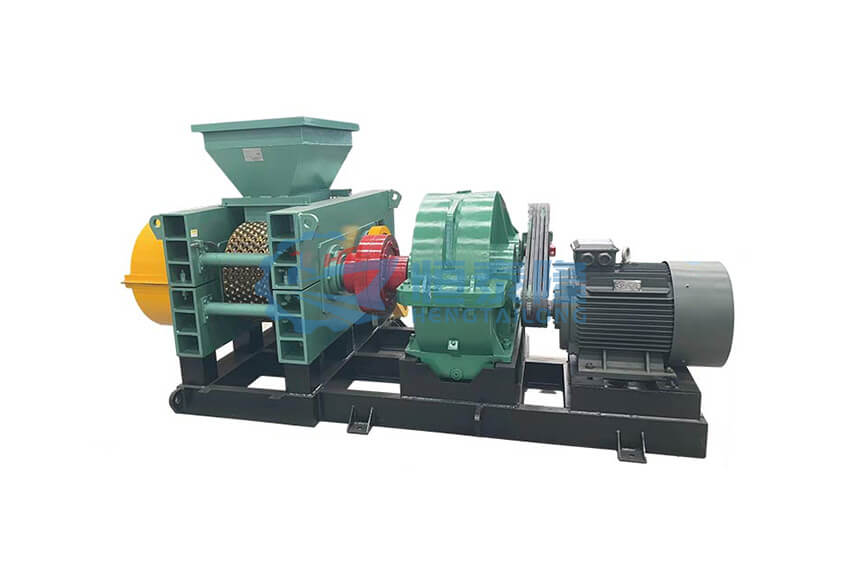

Coal power briquette machine
