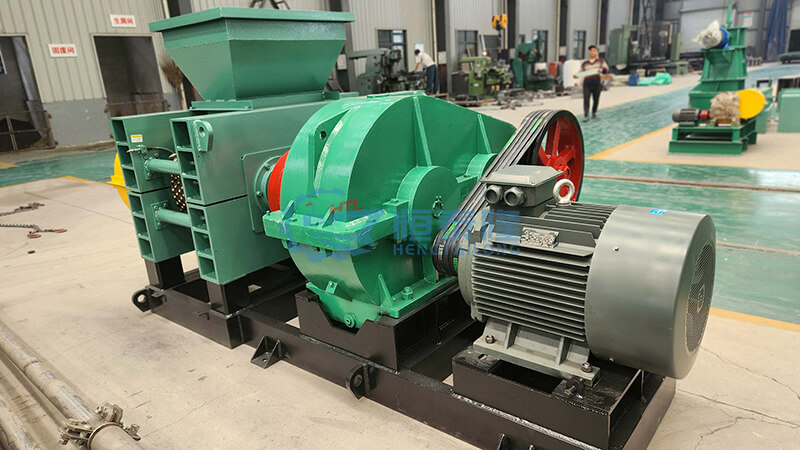

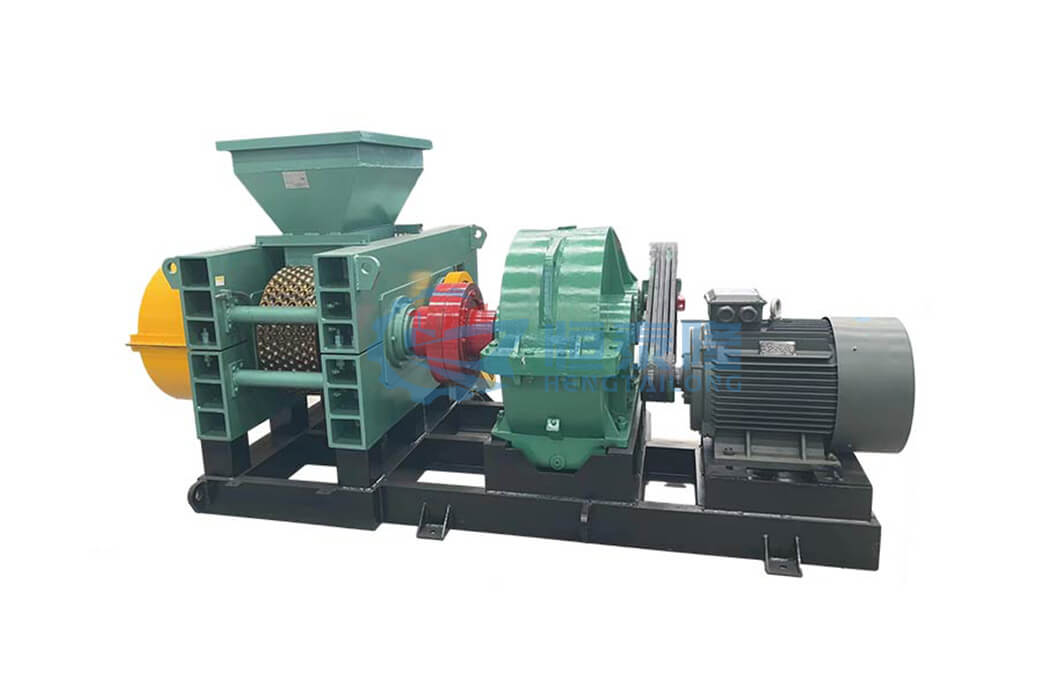

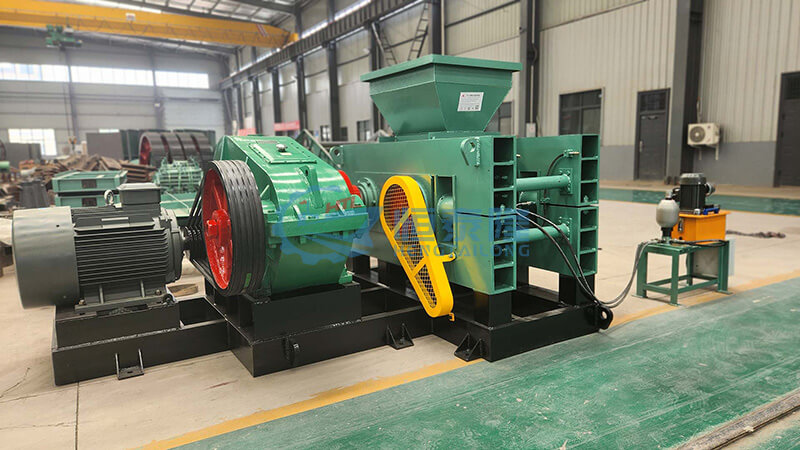

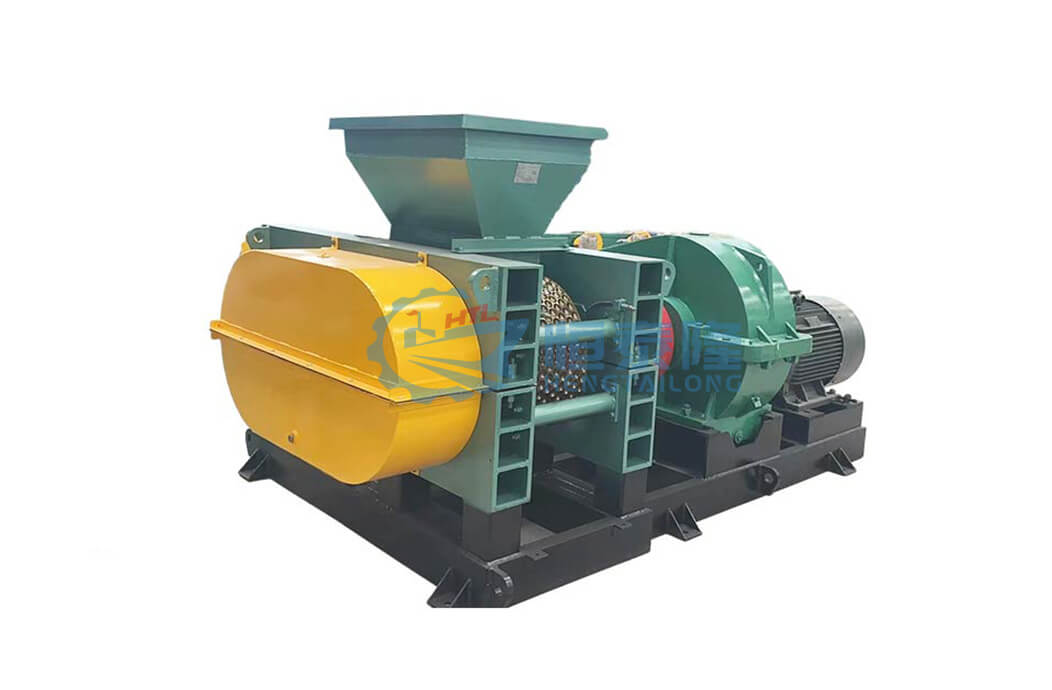

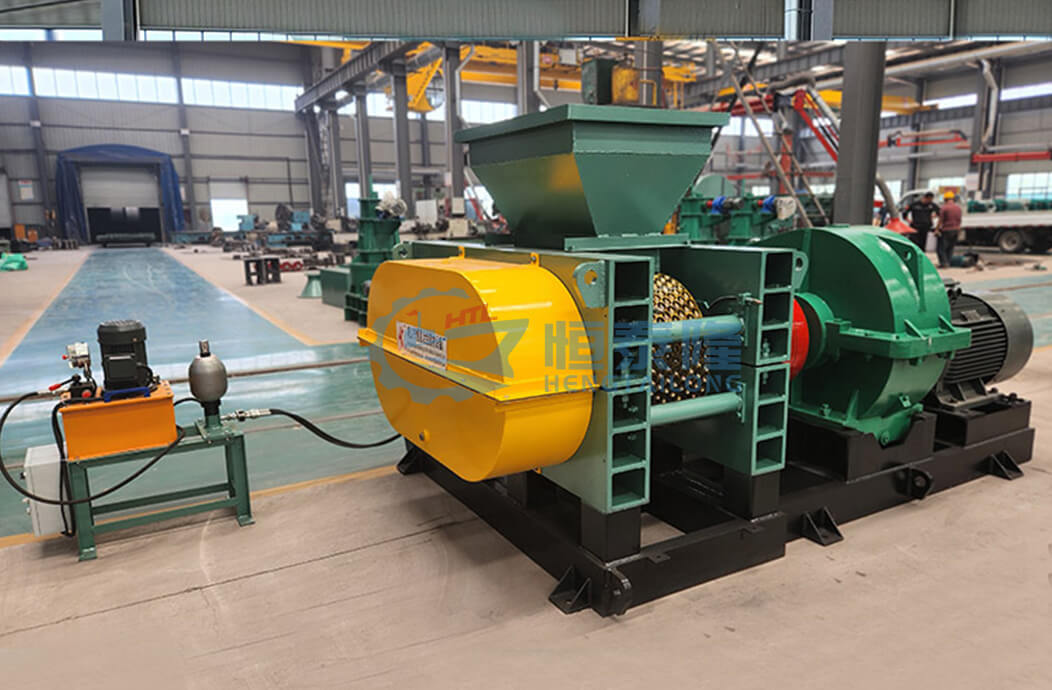

Coal dust briquette making machine is suitable for civil and industrial coal production. Coal dust briquette making machine features in excellent technical performance, compact structure, reasonable assembly process, special alloy material rollers, and long life. Coal dust briquette making machine also solves the coal problems of low molding pressure and low strength of the production briquette in the coal briquette production process. It is the ideal equipment for coal briquette .
|
feature of the briquette machine |
-Good price with CE BV ISO. -Different type:roller type,hydraulic type,high pressure type coal briquette machine -Strong structure,high briquetting ratio because the briquette machine excellent design -it can be the single machine or whole production line. -Roller material can be 65Mn, 9Cr2Mo, Alloy Steel, -high-chromium alloy and so on. More wearable and long using life than normal steel material. -Final product size 25-70mm and shape can be round,pillow&square shape. Briquettes shape and size can be made according to customer. -Engineer available for installation in customer country for briquette machine. -provide the matched binder for the briquettes making. -Engineer available for installation in customer country.
|
|
Raw material can be pressed by briquette machine |
1.lignite/ Coal powder/coal fine/coal dust 2.Charcoal powder/charcoal fine/charcoal dust 3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/ 4.Activated carbon/carbon black 5.All kinds of metal powder/Manganese/magnesium/copper/iron 6.Iron oxide/aluminum oxide/clay 7.Some other type powder.
|
|
Description of briquette machine |
The finished briquette won't be broken when dropped from 150-150cm height. Meanwhile, it is easy for combustion, no smell and last longer when burning.the final product shape and the size can be design according to you.also,our engineer will suggest you the best size and shape for you.
|
|
Request for the raw material |
1)feeding size to briquette machine should controlled less than 5mm. 2)Material moisture control in 8-10%. 3)Material with any metal objects can't be allowed,or else they will damage the rollor surface of machine. |

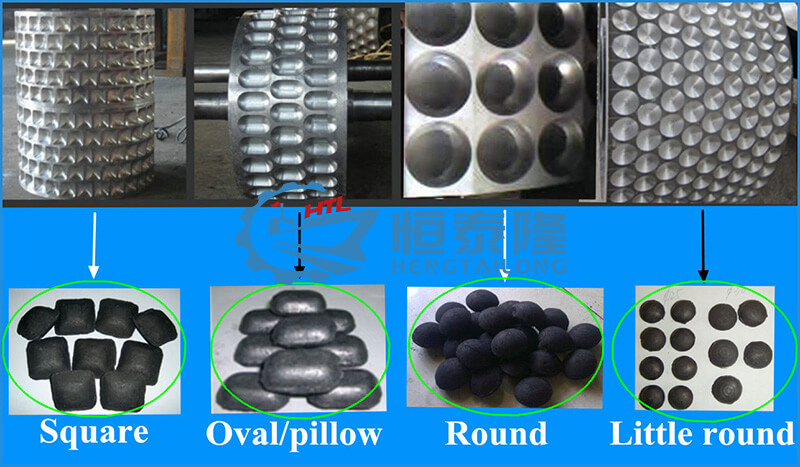

Baller Shaped\Roller display

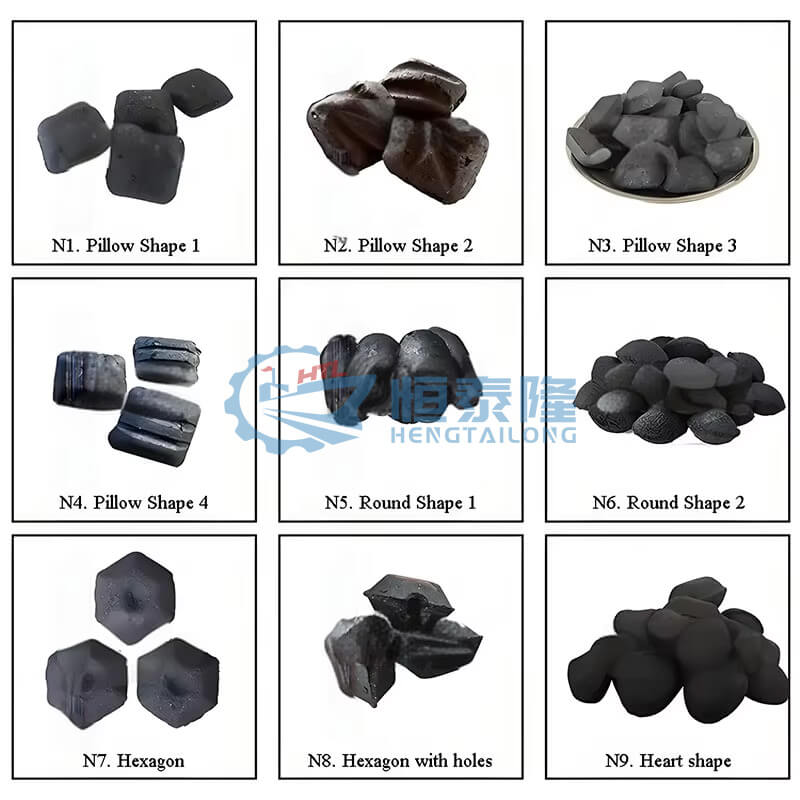

The final products can be shaped by special moulds into different shapes such as egg, pillow, finger, heart, oval, round, sphere, column and square. We can also customize shapes for customers.
|
Model |
Gear reducer |
Motor(KW) |
Capacity(T/H) |
Dimension(m) |
|
290 |
YQ350 |
5.5 |
1-2 |
1.5*1.2*1.6 |
|
360-1 |
YQ350 |
7.5 |
2-3 |
1.7*1.2*1.6 |
|
360 |
YQ400 |
11 |
2-3 |
1.7*1.6*1.8 |
|
450 |
YQ500 |
22 |
4-5 |
1.8*1.9*2.2 |
|
550 |
YQ650 |
37 |
5-7 |
2.4*2.2*2.3 |
|
650 |
YQ750 |
45 |
8-10 |
2.6*2.2*2.7 |
|
850 |
YQ1000 |
75 |
15-20 |
2.6*2.4*3.2 |
|
1000 |
YQ1200 |
110 |
25-30 |
2.9*2.8*3.5 |
|
Note: Customization and adjustment can be made according to user requirements! |
||||
